Devices eazyplex®System


Devices eazyplex® system



Molecular diagnostics made easy!


The CE IVD certified eazyplex® system combines robust isothermal amplification with efficient real-time detection! Lyophilized reagents can be shipped ready for use at room temperature and stored directly at the workplace. Testing is carried out directly from the sample without DNA/RNA extraction. As part of the constantly growing platform, now also in a customer-oriented device selection.



The device selection for using the eazyplex® tests offers various models, optimally adapted to the respective user needs.

The units are operated via a large display with a resistive touchscreen that can also be operated with protective gloves. These screens can be used to set up the instruments for carrying out each eazyplex® test. Intuitive software guides you through the test. Data entry is optimized with a barcode scanner. Signal acquisition is graphically displayed in real time during a run (not with eazyOne) and all data is stored in the device's large internal FLASH memory. This data is stored permanently and can be viewed on the high-resolution display at any time after the run has been completed, printed out using a label printer or exported as a PDF file via a USB connection; some devices are prepared for HIS/LIS connection. The closed system avoids any handling after amplification and thus eliminates laboratory contamination of the amplified products.


eazyMini is the latest product in the device range, with a modern design and sophisticated details, a light and robust diagnostic unit for rapid single tests 24/7. The eazyMini has two independent heating blocks for maximum flexibility, intuitive software, an integrated barcode scanner and can be connected to the HIS/LIS system via an HL7 interface. The device with the best price-performance ratio meets all the requirements of a modern molecular diagnostic laboratory in a contemporary design.


eazyOne our low-budget device with one block.

The first step in our expansion of the device range; the eazyOne. A device for our eazyplex® tests, with one block, intuitive software, data transfer via USB stick, lightweight construction and unbeatable price.


Genie II MK2 is the 2 block device of the Genie family and the Genie HT is the larger modular device for higher sample throughput.

The compact Genie II has two independently controlled heating blocks. The larger Genie HT is modularly expandable with the option of 1 to 12 independent work blocks for a higher sample throughput. The Genie HT can be connected uni-directionally to a HIS/LIS system with a customer-specific connection.


eazyMini eazyOne Genie HT Genie II
Blocks 2 1 1-12 2
Real-time data display yes no yes yes
Scanner integrated extern extern extern
USB Port yes yes yes yes
HIS/LIS HL7 no customer-specific* no
PDF creation yes yes yes yes
Label printing yes no yes yes
Battery no no no yes
Calibration integrated extern no no

*HIS/LIS connectivity only uni-directional


eazyMini


  • The latest generation of eazyplex® devices, with modern design and sophisticated details.
  • Made in Germany
  • 2 blocks, i.e. 2 samples simultaneously and independently
  • Intuitive software guides you through the test; easy and fast
  • Real-time detection, clear presentation of results
  • Barcode scanner integrated in the device, space-saving
  • USB interfaces for easy data transfer
  • HIS/LIS connection (HL7 standard)
  • PDF generation of the result report, complete running data for printing
  • Results can be printed directly on adhesive labels for quick information
Technical details

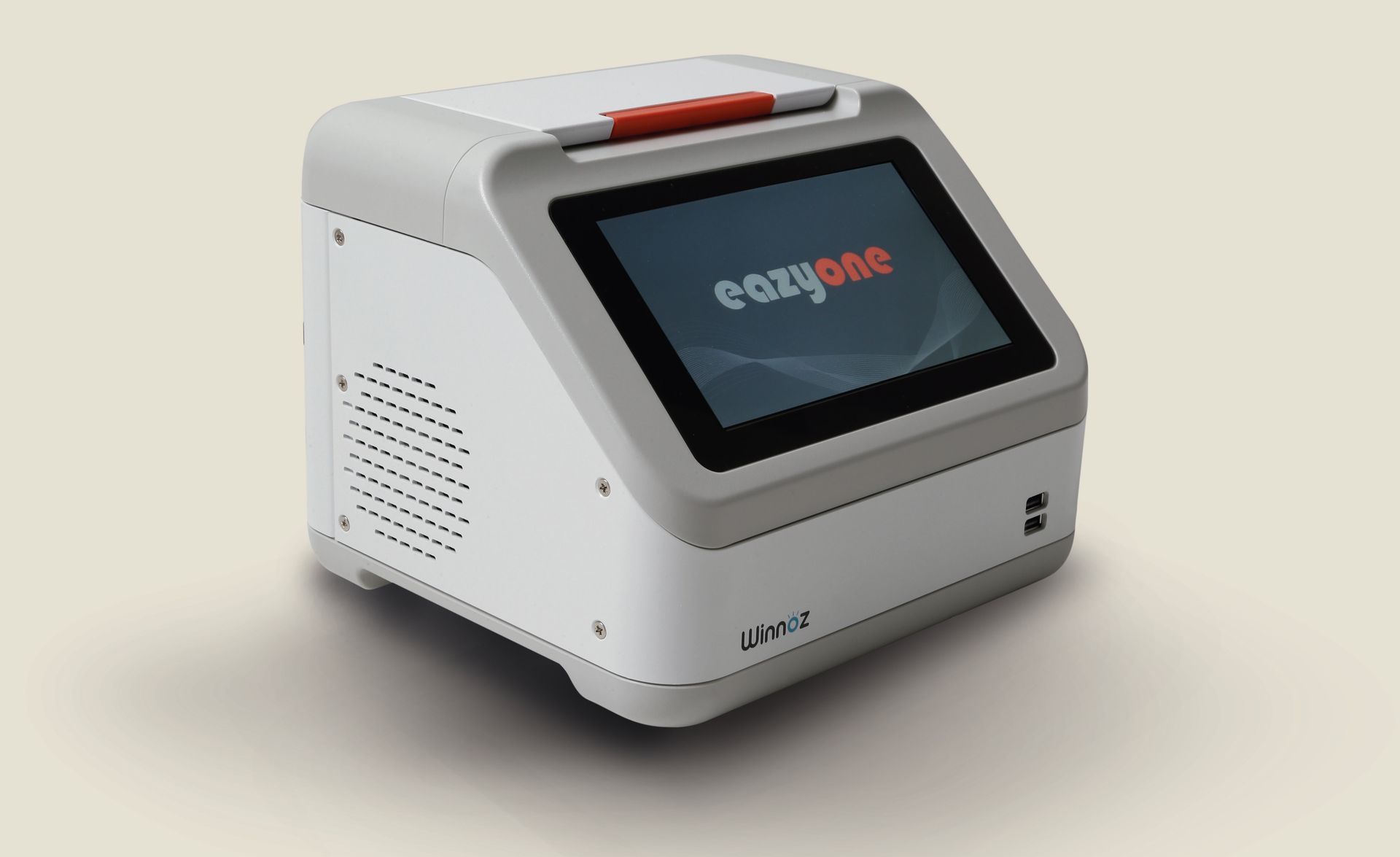

eazyOne


  • One heating block
  • very light and portable construction
  • intuitive software guides you through the test, quick and easy
  • automatic generation of run data PDFs, including graphs
  • easy data transfer via USB stick
  • calibration set included
  • small footprint


Technical details

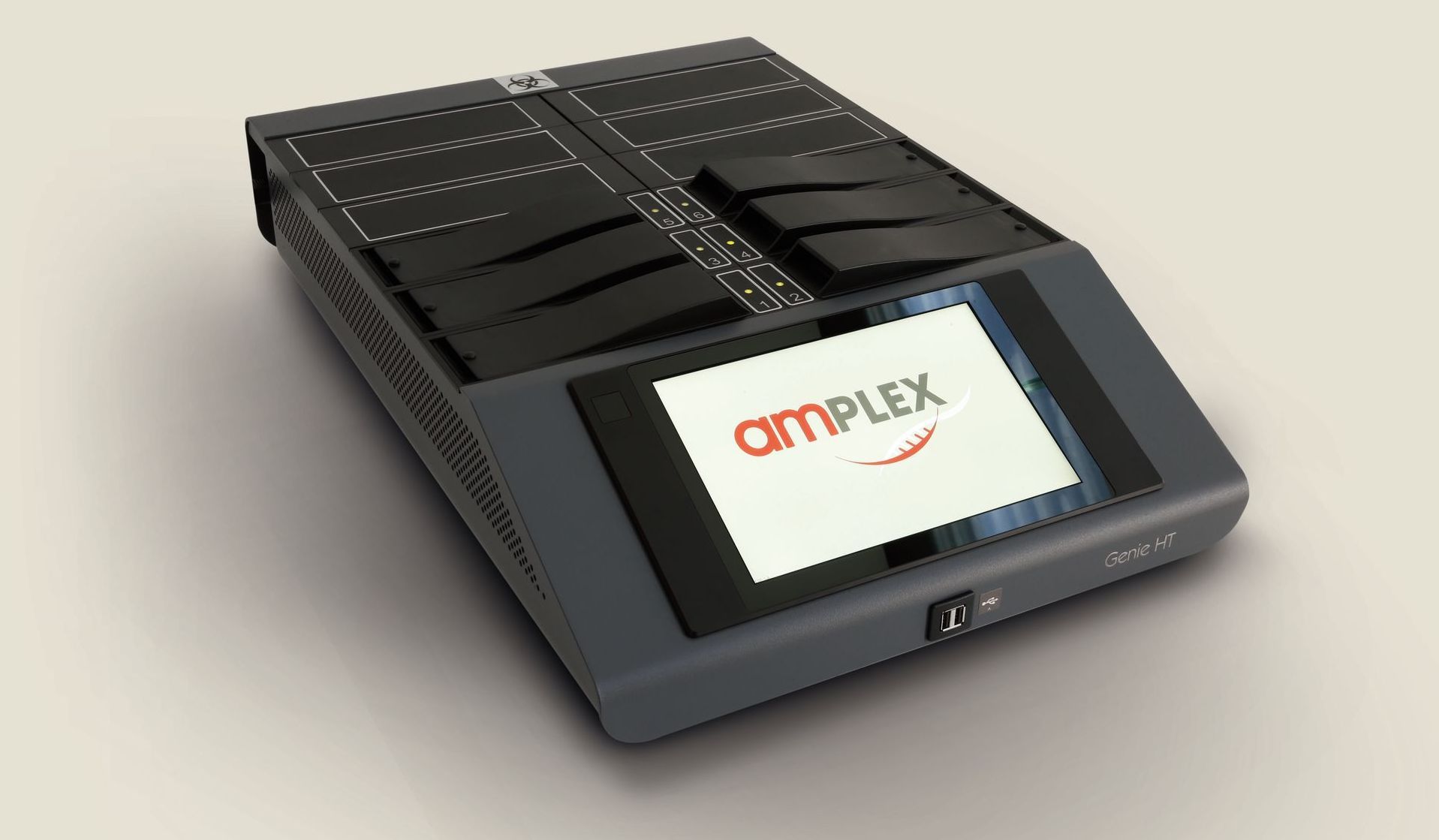

Genie HT


  • highly sensitive optics in up to twelve independent heating blocks
  • modular block structure from 1 to 12 blocks
  • HIS/LIS connection customized uni-directional
  • operation without a PC connection via a large touchscreen




Technical details

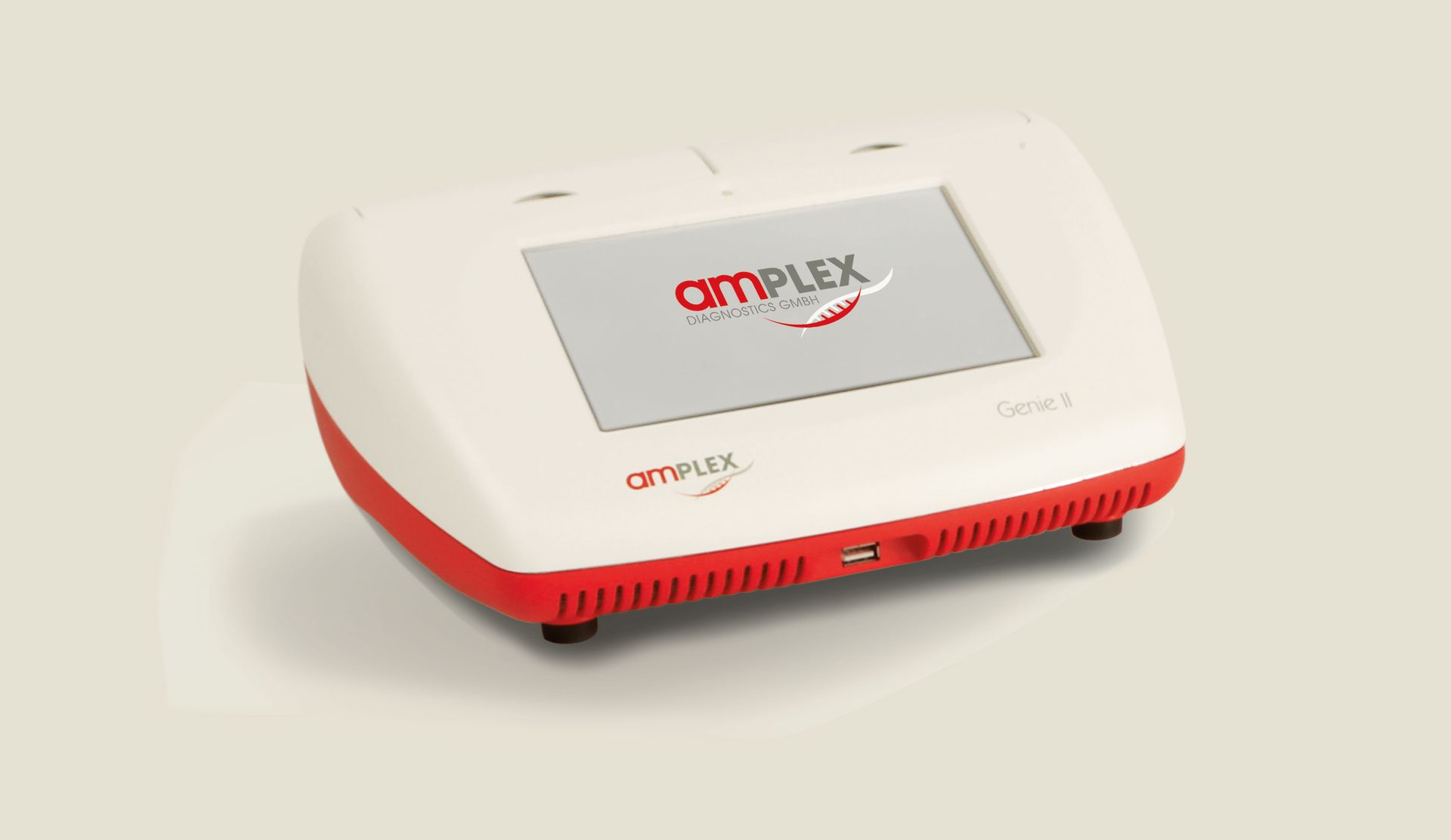

Genie II Mk2


  • highly sensitive optics in two independent heating blocks
  • lightweight and portable
  • completly rechargeable battery
  • operation without a PC connection via a large touch screen




Technical details

Lyophilized, ready to use, no DNA/RNA extraction, storage and use at room temperature directly at the workplace. Improve your diagnostics to a modern level!


Do you have any questions about our offer? Our competent team is happy to help you. Simply write to us at info@eazyplex.com and we will get in touch with you as soon as possible.

Of course, you can also reach us by phone at  49 8073 9169350 or visit us directly at the next event – we look forward to seeing you!
